Description
* Powerful 15 amp/5.5 HP (maximum motor HP) motor provides more overload capacity, increasing performance and durability
* QUIK-CHANGE™ keyless blade change system increases productivity by providing the user the ability to change wheels without a wrench
* Exclusive QUICK-FENCE™ is a 45-degree, adjustable fence designed for fast and accurate angle cuts without using a wrench

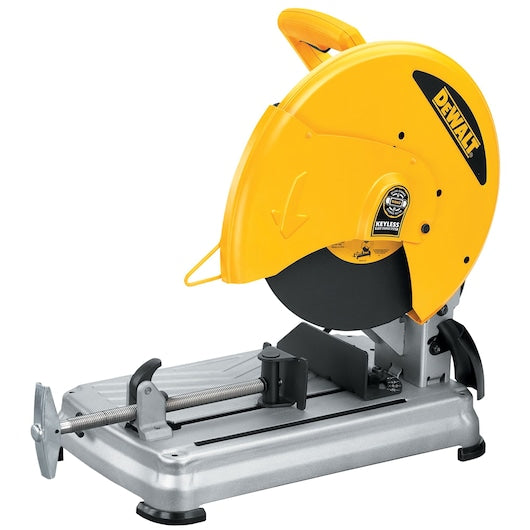

The D28715 14" Chop Saw w/ QUIK-CHANGE™ Keyless Blade Change System is powered by a 15 Amp motor for high performance without overheating. Features two tool-free systems: Quik-Change™ blade change system and Quick-Fence™ 45-degree adjustable fence reduces downtime with fast and accurate cuts.
* QUICK-LOCK vise allows for fast clamping on different size materials to increase productivity
* Ergonomically designed "D" handle provides a more comfortable hand position, reducing fatigue and increasing productivity
* Extra wide solid steel base provides increased stability when cutting longer material. The four pre-drilled holes in the base allow easy bolt down to any work bench. The solid steel base also allows user to weld jigs or stops directly to the base.
* Heavy-duty, lock-down pin allows head of the saw to be locked in the carrying position without the use of a chain
* Heavy-duty compression spring provides smooth movement and greater durability than torsion springs
* Spindle lock allows user to make wheel changes quickly and easily, saving time and money
* Large cutting capacity (5" round / 4-1/2" x 6-1/2" rectangle) provides the ability to cut a wide variety of materials
* Adjustable spark guard allows user to channel sparks
* Easily accessible brushes allow for convenient servicing on the worksite to minimize downtime
Power Input: 2200 Watts
Power Output: 1350 Watt
No Load Speed: 4000 rpm
Wheel Diameter: 355x2.5 mm
Max. Cutting Capacity at 90° [Square Profile]: 120x120 mm
Max. Cutting Capacity at 90° [Rectangular Profile]: 100x200 mm
Max. Cutting Capacity at 90° [L-Shape Profile]: 140x140 mm
Max. Cutting Capacity at 90° [Rounded Profile]: 130 mm
Max. Cutting Capacity at 45° [Square Profile]: 113x113 mm
Max. Cutting Capacity at 45° [Rectangular Profile]: 100x140 mm
Max. Cutting Capacity at 45° [L-Shape Profile]: 120x120 mm
Max. Cutting Capacity at 45° [Rounded Profile]: 130 mm
Weight: 18 kg
Length: 520 mm
Sound Pressure
3 dB(A)
Sound Power Uncertainty
Includes:
* (1) 14" abrasive wheel
