Description
Overview
- Ariens® AX 224CC engine with electric start
- Strong cast-iron gear case
- Ariens exclusive Rapidtrak™ technology is capable of tackling any terrain
| Title |

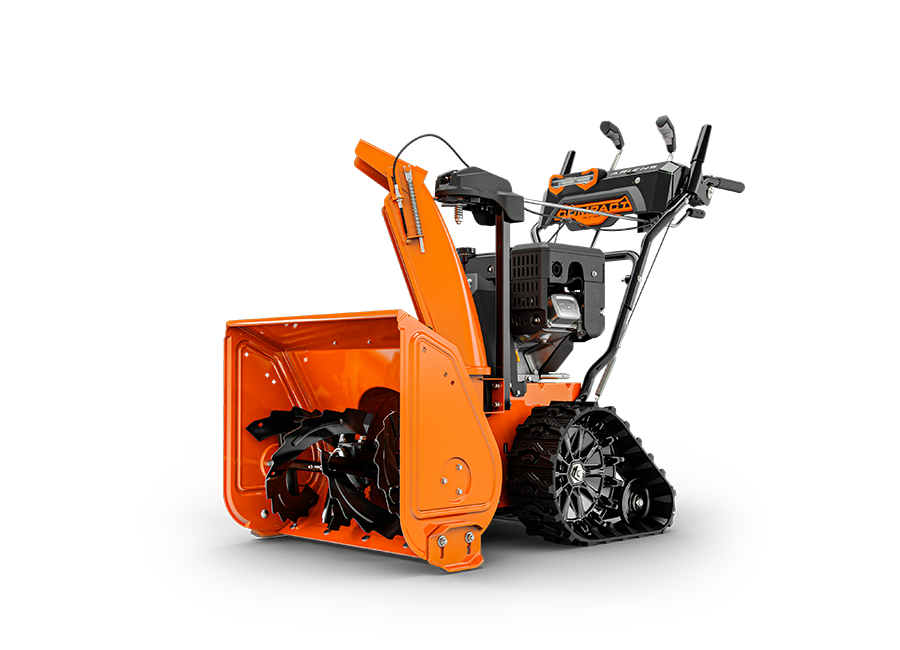

COMPACT 24 RAPIDTRAK
|
||
|---|---|---|---|
| Model Number |
920035
|
||
| Power Train | |||
| Engine |
Ariens AX®
|
||
| Engine Displacement (in/cc) |
223 cc
|
||
| Starting System |
120v / Electric
|
||
| Steering |
Auto-Turn
|
||
| Drive Type |
Disc-O-matic
|
||
| Speeds |
6 Forward/2 Reverse
|
||
| Tire Type |
Directional Snow Track
|
||
| Clearing Specs | |||
| Clearing Width (in/cm) |
24 In / 61cm
|
||
| Housing Height |
20 In / 50.8cm
|
||
| Throwing Distance |
3 ft - 40 ft
|
||
| Chute Rotation |
2.5x Quick Turn
|
||
| Chute Turning Radius |
205
|
||
| Deflector Control |
In-Dash Lever
|
||
| Stage Type |
Two Stage
|
||
| Auger Diameter |
11 In / 27.9cm
|
||
| Auger Type |
Steel Serrated
|
||
| Impeller Profile |
Steel 3 Blade
|
||
| Impeller Diameter |
12 In / 30.5cm
|
||
| Skid Shoes |
Steel Reversible
|
||
| Scraper Bar |
Steel Adjustable
|
||
| Gear Case |
Cast Iron
|
||
| Dimensions | |||
| Length |
53.3 In / 135.4cm
|
||
| Width |
26.4 In / 67.1cm
|
||
| Height |
44 In / 111.8cm
|
||
| Weight (assembled) |
220 lb
|
||
| Warranties | |||
| Product Warranty |
3 years residential use. 90 days commercial use
|
||
| Gear Case Warranty |
5 Year Consumer, 1 Year Commercial
|
||
| Accessories | |||
| Features at a Glance |
Light Type: Halogen
Handwarmers: Optional Remote Deflector Control: Standard Drift Cutters: Optional Track Drive: Standard One Hand Interlock: Standard |
||
