Description
Overview
- Easy push-button electric start Ariens® AX 420cc engine
- Wide 30" clearing width that moves 83 tons of snow per hour
- Premium features like an LED headlight, handwarmers, a remote deflector, and one-hand interlock
| Title |

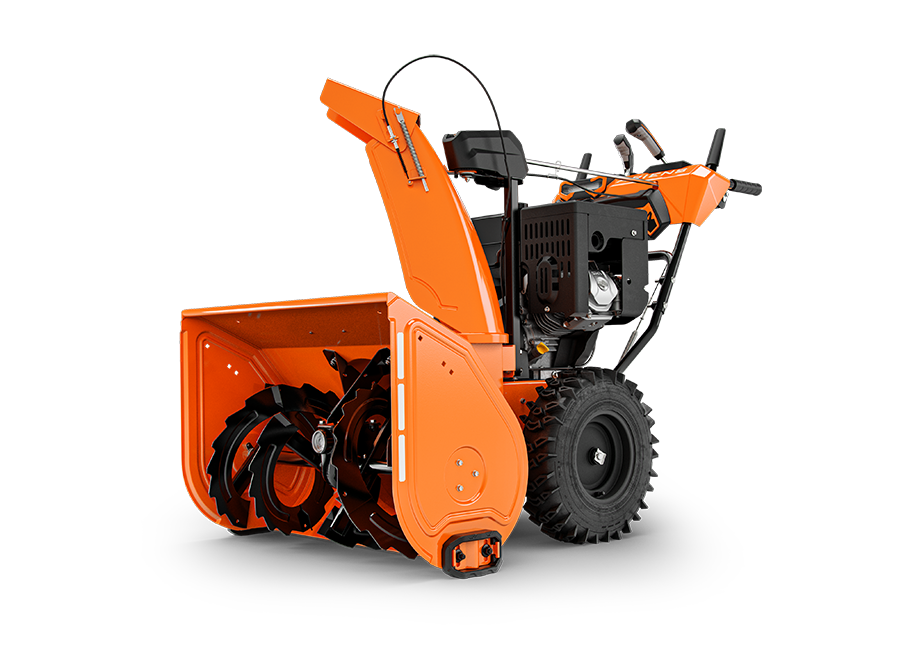

PLATINUM 30 SHO
|
||
|---|---|---|---|
| Model Number |
921075
|
||
| Power Train | |||
| Engine |
Ariens AX®
|
||
| Engine Displacement (in/cc) |
420 cc
|
||
| Starting System |
120v / Electric
|
||
| Steering |
Auto-Turn
|
||
| Drive Type |
Disc-O-matic
|
||
| Speeds |
6 Forward/2 Reverse
|
||
| Tire Size |
16 In / 40.6cm
|
||
| Tire Type |
Directional Snow Tread
|
||
| Clearing Specs | |||
| Clearing Width (in/cm) |
30 In / 76.2cm
|
||
| Housing Height |
21 In / 53.3cm
|
||
| Throwing Distance |
3 ft - 55 ft
|
||
| Chute Rotation |
Quick Turn
|
||
| Chute Turning Radius |
200
|
||
| Deflector Control |
In-Dash Lever
|
||
| Stage Type |
Two Stage
|
||
| Auger Diameter |
14 In / 35.6cm
|
||
| Auger Type |
Steel Serrated
|
||
| Impeller Profile |
High Speed Steel 3 Blade
|
||
| Impeller Diameter |
14 In / 35.6cm
|
||
| Skid Shoes |
Commercial Shoes
|
||
| Scraper Bar |
Steel Adjustable
|
||
| Gear Case |
Cast Iron
|
||
| Dimensions | |||
| Length |
58.3 In / 148.1cm
|
||
| Width |
32.4 In / 82.3cm
|
||
| Height |
45.9 In / 116.6cm
|
||
| Weight (assembled) |
274 lb
|
||
| Warranties | |||
| Product Warranty |
3 years residential use. 90 days commercial use
|
||
| Gear Case Warranty |
5 Year Consumer, 1 Year Commercial
|
||
| Accessories | |||
| Features at a Glance |
Light Type: LED
Reflective Decals: Standard Handwarmers: Standard Remote Deflector Control: Standard Drift Cutters: Optional One Hand Interlock: Standard |
||
